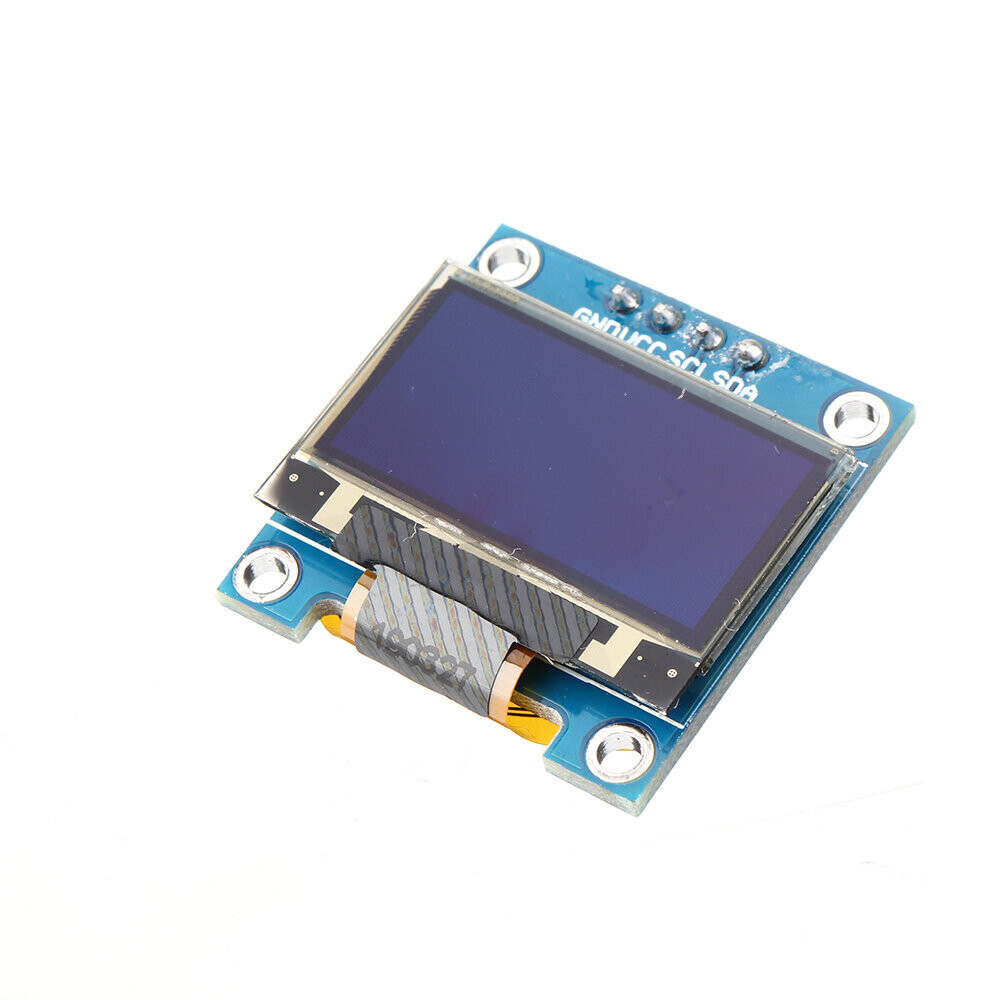

0.96 Inch 128*64 OLED I2C IIC Communication Display Module
+2

0.96 Inch 128*64 OLED I2C IIC Communication Display Module

€7.00
In stock
1
Share this product with your friends
ShareSharePin it
0.96 Inch 128*64 OLED I2C IIC Communication Display Module
Product Details

PINs:

VCC: 3.3 - 5V (DC)
GND: Ground
SCL: Serial Clock
SDA: Serial Data


Specifications:

Size: 0.96 inch

Resolution: 128 x 64
Color: white
Viewing angle: >160°
Support platform: 51 series, MSP430 series, STM32/2, etc.
Ultra low power consumption: 0.04W during normal operation
Wide voltage support: DC 3.3V - 5V
Working temperature: -30 ° C ~ 80 ° C
Driver chip: SSD1306
Communication method: IIC, only 2 I/O ports
Backlight: OLED self-illumination, no backlight required

Package includes:

1 x OLED module
