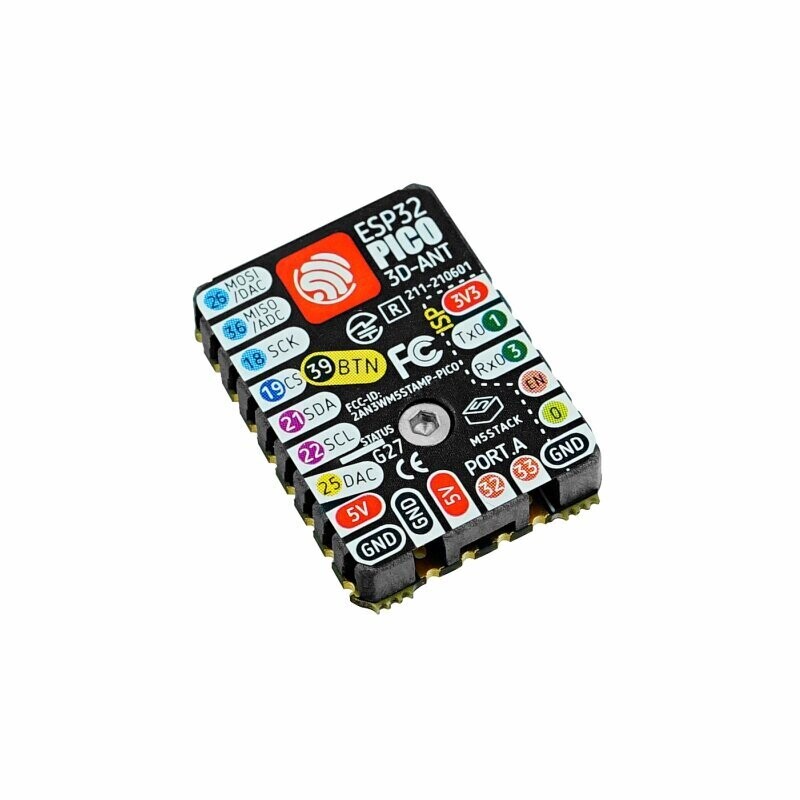

M5Stack PICO ESP32-PICO-D4 WIFI + BT

Flash: 4MB

Input Voltage: 5V @ 500mA

Power consumption: Normal standby:5V@29mA, WIFI STA mode: 5V@60mA, Bluetooth mode data sending status: 5V@84mA, Deep-sleep mode: 5V@0.35mA

UI: Programmable physical button x 1, Programmable RGB LED (SK6812) x 1

Antenna Type: 2.4G 3D Antenna

WiFi: 802.11 b/g/n (up to 150 Mbps for 802.11n), spectrum range: 2.4 GHz ~ 2.5 GHz

Bluetooth: Bluetooth V4.2 BR/EDR and BLE standard, NZIF receiver, sensitivity up to -97 dBm

Module Resource Interface: ADC, DAC, touch sensor, SD/SDIO/MMC host controller, SPI, SDIO/SPI slave controller, EMAC, motor PWM, LED PWM, UART, I2C, I2S, IR remote controller, GPIO, pulse counter

IO interface: x12 G0, G1, G3, G26, G36, G18, G19, G21, G22, G25, G32, G33

IO interface spacing: 2.54mm

Operating temperature: 32°F to 104°F ( 0°C to 40°C )

Net weight: 1.6g

Gross weight: 2.5g

Product Dimensions: 18*24*4.4mm

Package Size: 85*55mm sealing bag (translucent)
