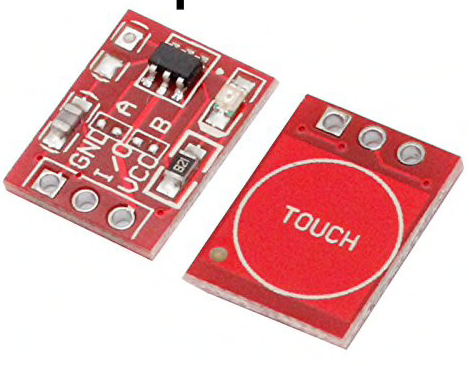

TTP223 Touch Button Switch Capacitive Sensor Module

Module size: 15mm X 11mm
Power supply: 2.5V - 5.5V

Trigger setting mode: (1- > Short ; 0- > No Short)
AB=00:No-lock High TTL level ouput;
AB=01:Self-lock High TTL level ouput;
AB=10:No-lock Low TTL level ouput;
AB=11:Self-lock Low TTL level ouput;
